PLUSR300 EXPERT U VD DATALOGGER

A LINE OF POWER AND CONTROL PANEL WITH DATALOGGER FUNCTION FOR CONTROL OF THE EVAPORATING UNIT ONLY

    A line of power and control panels for refrigeration systems to control only the three-phase evaporating unit where units are served by a central refrigerator or remote condenser unit and Datalogger function. A large backlit LCD allows for simultaneous display of ambient temperature, evaporator temperature, calendar and all other refrigeration system information. The temperature recorder can record (for up to year) ambient temperature and relative alarms through an electronic circuit equipped with autonomous temperature sensor (as per EN 12830). Moreover, defrosts can be carried out in real time clock mode and it is possible to connect up to the TeleNET or Modbus-RTU supervision system. Magnetothermic and differential protection for room light accessible from the front panel linked to an innovative form makes it a perfect and functional choice..

      Applications
      • Control of evaporating unit with electrical defrost up to 12 kW.

      Options
      • Module for communication with smartphone (Android).
      • Battery backup (Datalogger) up to 40 hours.
      • RS version with thermostat door heater and discharge heater.
      Main characteristics
      • Enable for motor condenser unit, defrosting elements, evaporator fans, solenoid valve, room light and all standard-compliant electrical safeguards.
      • Magnetothermic circuit breaker accessible from the front panel, which cuts the general power supply.
      • Differential magnetothermic dedicated to room light accessible from the front panel (see the table).
      • Easy wiring on the internal terminal block.
      • Auxiliary relay with activation configurable by parameter.
      • Transparent cover for access to all the protections, all with IP65 protection rating.
      • Control electronics with large backlit LCD and user-friendly keypad.
      • Simultaneous display on LCD of ambient temperature, evaporator temperature, calendar and system status.
      • Recording of ambient temperature and relative alarms (up to 1 year).
      • USB slot built into controller for data downloads.
      • Software updating from USB.
      • Defrosts can be carried out in real time clock mode.
      • RS485 for connection to TeleNET industrial supervision network or Modbus-RTU standard protocol.
      • TeleNET software to download data on personal computer (provided free of charge with product).
      Properties

      PLUSR 300 EXPERT U VD 6
      PLUSR 300 EXPERT U VD 12

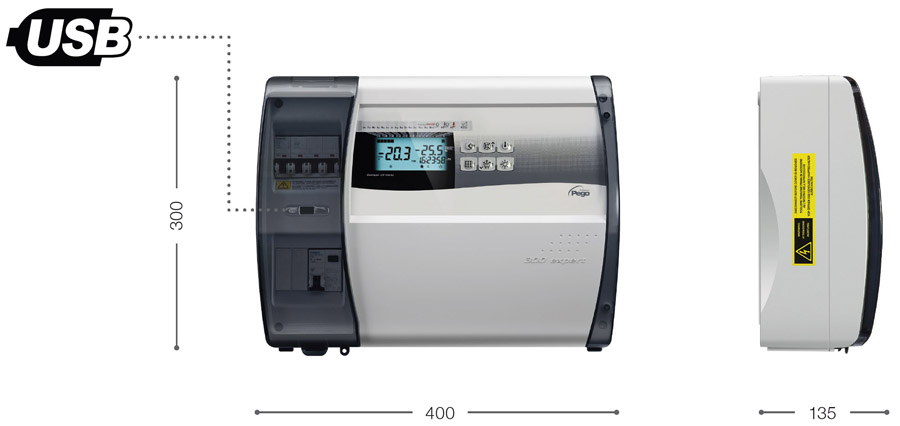

      Dimension
      PLUSR 300 EXPERT U VD 6
      400 x 300 x 135 mm
      PLUSR 300 EXPERT U VD 12
      400 x 300 x 135 mm
      Weight
      PLUSR 300 EXPERT U VD 6
      9kg
      PLUSR 300 EXPERT U VD 12
      10kg
      Front protection rating
      PLUSR 300 EXPERT U VD 6
      IP 65
      PLUSR 300 EXPERT U VD 12
      IP 65
      Power supply
      PLUSR 300 EXPERT U VD 6
      400 VAC ±10% 50/60 Hz
      PLUSR 300 EXPERT U VD 12
      400 VAC ±10% 50/60 Hz
      Status indicator
      PLUSR 300 EXPERT U VD 6
      Display LCD (with backlight)
      PLUSR 300 EXPERT U VD 12
      Display LCD (with backlight)
      Load type
      PLUSR 300 EXPERT U VD 6
      Three phase
      PLUSR 300 EXPERT U VD 12
      Three phase
      Working temperature
      PLUSR 300 EXPERT U VD 6
      -5 ÷ +40°C
      PLUSR 300 EXPERT U VD 12
      -5 ÷ +40°C
      Storage temperature
      PLUSR 300 EXPERT U VD 6
      -25 ÷ +55°C
      PLUSR 300 EXPERT U VD 12
      -25 ÷ +55°C
      Relative ambient humidity
      PLUSR 300 EXPERT U VD 6
      < 90% RH without condensate
      PLUSR 300 EXPERT U VD 12
      30% - 90% RH without condensate
      Reading range
      PLUSR 300 EXPERT U VD 6
      -45 ÷ 99 °C
      PLUSR 300 EXPERT U VD 12
      -45 ÷ 99 °C
      Room light protection
      PLUSR 300 EXPERT U VD 6
      Differential magnetothermic circuit breaker (optional)
      PLUSR 300 EXPERT U VD 12
      Differential magnetothermic circuit breaker
      Main switch / general protection
      PLUSR 300 EXPERT U VD 6
      4 poles magnetothermic 16A
      PLUSR 300 EXPERT U VD 12
      4 poles magnetothermic 25A
      Control
      PLUSR 300 EXPERT U VD 6
      Pego
      PLUSR 300 EXPERT U VD 12
      Pego
      Alarm signals
      PLUSR 300 EXPERT U VD 6
      Display LCD + Buzzer
      PLUSR 300 EXPERT U VD 12
      Display + Buzzer
      Defrosting
      PLUSR 300 EXPERT U VD 6
      Electrical
      PLUSR 300 EXPERT U VD 12
      Electrical
      Ambient probe
      PLUSR 300 EXPERT U VD 6
      NTC 10 kΩ
      PLUSR 300 EXPERT U VD 12
      NTC 10 kΩ
      Evaporator probe
      PLUSR 300 EXPERT U VD 6
      NTC 10 kΩ
      PLUSR 300 EXPERT U VD 12
      NTC 10 kΩ
      Sonda Datalogger
      PLUSR 300 EXPERT U VD 6
      NTC 10 kΩ
      PLUSR 300 EXPERT U VD 12
      NTC 10 kΩ
      Door switch
      PLUSR 300 EXPERT U VD 6
      Present
      PLUSR 300 EXPERT U VD 12
      Present
      Man in cold-room alarm
      PLUSR 300 EXPERT U VD 6
      Available
      PLUSR 300 EXPERT U VD 12
      Available
      Defrosting
      PLUSR 300 EXPERT U VD 6
      6000W (AC1) Eq. resistive load
      PLUSR 300 EXPERT U VD 12
      12000W (AC1) Eq. resistive load
      Evaporator fans
      PLUSR 300 EXPERT U VD 6
      550W (1PH)
      PLUSR 300 EXPERT U VD 12
      2x2000W (3PH) or 2x1500W (1PH)
      Solenoid valve
      PLUSR 300 EXPERT U VD 6
      Present
      PLUSR 300 EXPERT U VD 12
      Present
      Door heater
      PLUSR 300 EXPERT U VD 6
      Present
      PLUSR 300 EXPERT U VD 12
      Present
      Enable condensing unit
      PLUSR 300 EXPERT U VD 6
      Present
      PLUSR 300 EXPERT U VD 12
      Present
      Room light
      PLUSR 300 EXPERT U VD 6
      800W (AC1) resistive load
      PLUSR 300 EXPERT U VD 12
      1200W (AC1) - Carico resistivo
      Alarm/AUX relay
      PLUSR 300 EXPERT U VD 6
      Present
      PLUSR 300 EXPERT U VD 12
      Present
      Supervision
      PLUSR 300 EXPERT U VD 6
      TeleNet / Modbus-RTU
      PLUSR 300 EXPERT U VD 12
      TeleNet / Modbus-RTU
      Dimension
      PLUSR 300 EXPERT U VD 6
      PLUSR 300 EXPERT U VD 12
      Connection Scheme
      PLUSR 300 EXPERT U VD 6
      PLUSR 300 EXPERT U VD 12
      Datalogger
      PLUSR 300 EXPERT U VD 6
      Independent circuit
      PLUSR 300 EXPERT U VD 12
      Independent circuit
      Numero massimo di registrazioni senza sovrascritture
      PLUSR 300 EXPERT U VD 6
      1 year (cyclic memory)
      PLUSR 300 EXPERT U VD 12
      1 year (cyclic memory)
      Normative referee
      PLUSR 300 EXPERT U VD 6
      EN 12830
      PLUSR 300 EXPERT U VD 12
      EN 12830
      Adequacy
      PLUSR 300 EXPERT U VD 6
      S (Conservation)
      PLUSR 300 EXPERT U VD 12
      S (Conservation)
      Type of climate environment
      PLUSR 300 EXPERT U VD 6
      A
      PLUSR 300 EXPERT U VD 12
      A
      Accuracy class
      PLUSR 300 EXPERT U VD 6
      1
      PLUSR 300 EXPERT U VD 12
      1
      Batteria di backup
      PLUSR 300 EXPERT U VD 6
      Opzionale
      PLUSR 300 EXPERT U VD 12
      Opzionale
      Comunicazione con smartphone (Android)
      PLUSR 300 EXPERT U VD 6
      Opzionale
      PLUSR 300 EXPERT U VD 12
      Opzionale
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
      Datalogger
      Designation
      Options
      Available Versions
      PLUSR 300 EXPERT U VD 6
      PLUSR 300 EXPERT U VD 12
      Product Code
      110P30RUVD01
      110P30RUVD51
      Product Code
      110P30RUVD02
      110P30RUVD52
      Compressor
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Evaporator fan
      Product Code
      110P30RUVD01
      0,5 kW
      Product Code
      110P30RUVD51
      0,5 kW
      Defrosting
      Product Code
      110P30RUVD01
      6,0 kW
      Product Code
      110P30RUVD51
      6,0 kW
      Electronic expansion valve
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Man in cold-room alarm
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Complete cold room management
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Condensing unit management
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Temperature/Humidity Management
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Evaporating unit management
      Product Code
      110P30RUVD01
      Yes
      Product Code
      110P30RUVD51
      Yes
      Double system management
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Valve management electronic on/off
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Valve management Stepper electronics
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Double evaporator management
      Product Code
      110P30RUVD01
      No
      Product Code
      110P30RUVD51
      No
      Datalogger
      Product Code
      110P30RUVD01
      Yes
      Product Code
      110P30RUVD51
      Yes
      Compressor
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Evaporator fan
      Product Code
      110P30RUVD02
      2,0 kW
      Product Code
      110P30RUVD52
      2,0 kW
      Defrosting
      Product Code
      110P30RUVD02
      12,0 kW
      Product Code
      110P30RUVD52
      12,0 kW
      Electronic expansion valve
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Man in cold-room alarm
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Complete cold room management
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Condensing unit management
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Temperature/Humidity Management
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Evaporating unit management
      Product Code
      110P30RUVD02
      Yes
      Product Code
      110P30RUVD52
      Yes
      Double system management
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Valve management electronic on/off
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Valve management Stepper electronics
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Double evaporator management
      Product Code
      110P30RUVD02
      No
      Product Code
      110P30RUVD52
      No
      Datalogger
      Product Code
      110P30RUVD02
      Yes
      Product Code
      110P30RUVD52
      Yes
