ECP25/36 BASE4 U VDE

POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY WITH CIRCUIT BREAKERS PROTECTION

POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY WITH CIRCUIT BREAKERS PROTECTION
POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY WITH CIRCUIT BREAKERS PROTECTION

    A line of power and electronic control panels to manage the three-phase evaporating unit only where devices are served by a compressor rack. Various power ranges and a wide range of optionals allow you to choose the panel best suited to your system.

    Brochure download
    Download Instruction Manual
    POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY WITH CIRCUIT BREAKERS PROTECTION
    POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY WITH CIRCUIT BREAKERS PROTECTION
      Application

      • Control of evaporating unit only with electrical defrost up to 42 kw.

      Main characteristic
      • Protection of the loads and the auxiliary circuit with circuit breakers.
      • Enabling for condensing unit, defrosting elements, evaporator fans, solenoid valve, room light and all standard-compliant electrical safeguards.
      • Compact, self-extinguishing ABS housing with IP65 protection rating and circuit breaker on front of panel.
      • Control electronics with large backlit LCD and user-friendly keypad.
      • LED system status indicators.
      • RS485 for connection to TeleNET industrial supervision network or Modbus-RTU standard protocol.
      • Free-voltage contact alarm output to activate other warning devices such as sirens or dialers.
      Properties

      ECP25 BASE4 U VDE
      ECP36 BASE4 U VDE
      Dimension
      ECP25 BASE4 U VDE
      470x650x210 mm
      ECP36 BASE4 U VDE
      470x650x210 mm
      Weight
      ECP25 BASE4 U VDE
      20kg
      ECP36 BASE4 U VDE
      20kg
      Front protection rating
      ECP25 BASE4 U VDE
      IP 65
      ECP36 BASE4 U VDE
      IP 65
      Power supply
      ECP25 BASE4 U VDE
      400 VAC ±10% 50/60 Hz
      ECP36 BASE4 U VDE
      400 VAC ±10% 50/60 Hz
      Status indicator
      ECP25 BASE4 U VDE
      Led + Display
      ECP36 BASE4 U VDE
      Led + Display
      Load type
      ECP25 BASE4 U VDE
      Three phase
      ECP36 BASE4 U VDE
      Three phase
      Working temperature
      ECP25 BASE4 U VDE
      -5 ÷ +50 °C
      ECP36 BASE4 U VDE
      -5 ÷ +50 °C
      Storage temperature
      ECP25 BASE4 U VDE
      -10 ÷ +70°C
      ECP36 BASE4 U VDE
      -10 ÷ +70°C
      Relative ambient humidity
      ECP25 BASE4 U VDE
      < 90% RH without condensate
      ECP36 BASE4 U VDE
      < 90% RH without condensate
      Reading range
      ECP25 BASE4 U VDE
      -45 ÷ +99°C
      ECP36 BASE4 U VDE
      -45 ÷ +99°C
      Door lock main switch
      ECP25 BASE4 U VDE
      80 A
      ECP36 BASE4 U VDE
      100 A
      General protection
      ECP25 BASE4 U VDE
      Magnetothermal switches
      ECP36 BASE4 U VDE
      Magnetothermal switches
      Control
      ECP25 BASE4 U VDE
      Pego
      ECP36 BASE4 U VDE
      Pego
      Alarm signals
      ECP25 BASE4 U VDE
      Led + Buzzer
      ECP36 BASE4 U VDE
      Led + Buzzer
      Defrosting
      ECP25 BASE4 U VDE
      Electrical
      ECP36 BASE4 U VDE
      Electrical
      Insulation transformer
      ECP25 BASE4 U VDE
      -
      ECP36 BASE4 U VDE
      Present
      Ambient probe
      ECP25 BASE4 U VDE
      NTC 10 kΩ
      ECP36 BASE4 U VDE
      NTC 10 kΩ
      Evaporator probe 1
      ECP25 BASE4 U VDE
      NTC 10 kΩ
      ECP36 BASE4 U VDE
      NTC 10 kΩ
      Door switch
      ECP25 BASE4 U VDE
      Present
      ECP36 BASE4 U VDE
      Present
      Man in cold-room alarm
      ECP25 BASE4 U VDE
      Available
      ECP36 BASE4 U VDE
      Available
      Defrosting heaters 1
      ECP25 BASE4 U VDE
      30000W (10000W x3, AC1)
      ECP36 BASE4 U VDE
      42000W (14000W x3, AC1)
      Evaporator fans 1
      ECP25 BASE4 U VDE
      4x2500W (3 PH)
      ECP36 BASE4 U VDE
      4x2500W (3 PH)
      Solenoid valve 1
      ECP25 BASE4 U VDE
      Present
      ECP36 BASE4 U VDE
      Present
      Enable condensing unit
      ECP25 BASE4 U VDE
      Present
      ECP36 BASE4 U VDE
      Present
      Room light
      ECP25 BASE4 U VDE
      Present
      ECP36 BASE4 U VDE
      Present
      2 Configurable relays
      ECP25 BASE4 U VDE
      Present
      ECP36 BASE4 U VDE
      Present
      Supervision
      ECP25 BASE4 U VDE
      TeleNet / Modbus-RTU
      ECP36 BASE4 U VDE
      TeleNet / Modbus-RTU
      Dimension
      ECP25 BASE4 U VDE
      ECP25/36 BASE4 U VDE
      ECP36 BASE4 U VDE
      ECP25/36 BASE4 U VDE

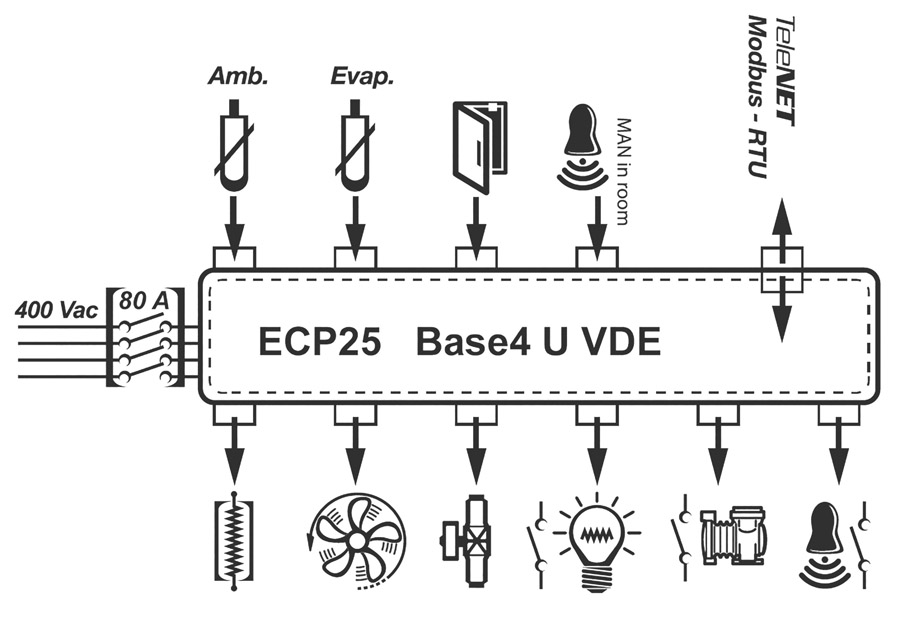

      Connection Scheme
      ECP25 BASE4 U VDE
      ECP25/36 BASE4 U VDE
      ECP36 BASE4 U VDE
      ECP25/36 BASE4 U VDE
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
      Available Versions
      ECP25 BASE4 U VDE
      ECP36 BASE4 U VDE
      Product Code
      110BUVDE25
      Product Code
      110BUVDE36
      Compressor
      Product Code
      110BUVDE25
      No
      Evaporator fan
      Product Code
      110BUVDE25
      2,5 kW
      Defrosting
      Product Code
      110BUVDE25
      30,0 kW
      Electronic expansion valve
      Product Code
      110BUVDE25
      No
      Man in cold-room alarm
      Product Code
      110BUVDE25
      No
      Complete cold room management
      Product Code
      110BUVDE25
      No
      Condensing unit management
      Product Code
      110BUVDE25
      No
      Temperature/Humidity Management
      Product Code
      110BUVDE25
      No
      Evaporating unit management
      Product Code
      110BUVDE25
      Yes
      Double system management
      Product Code
      110BUVDE25
      No
      Valve management electronic on/off
      Product Code
      110BUVDE25
      No
      Valve management Stepper electronics
      Product Code
      110BUVDE25
      No
      Double evaporator management
      Product Code
      110BUVDE25
      No
      Datalogger
      Product Code
      110BUVDE25
      No
      Compressor
      Product Code
      110BUVDE36
      No
      Evaporator fan
      Product Code
      110BUVDE36
      2,5 kW
      Defrosting
      Product Code
      110BUVDE36
      42,0 kW
      Electronic expansion valve
      Product Code
      110BUVDE36
      No
      Man in cold-room alarm
      Product Code
      110BUVDE36
      No
      Complete cold room management
      Product Code
      110BUVDE36
      No
      Condensing unit management
      Product Code
      110BUVDE36
      No
      Temperature/Humidity Management
      Product Code
      110BUVDE36
      No
      Evaporating unit management
      Product Code
      110BUVDE36
      Yes
      Double system management
      Product Code
      110BUVDE36
      No
      Valve management electronic on/off
      Product Code
      110BUVDE36
      No
      Valve management Stepper electronics
      Product Code
      110BUVDE36
      No
      Double evaporator management
      Product Code
      110BUVDE36
      No
      Datalogger
      Product Code
      110BUVDE36
      No
