ECP 400/750/1000 BASE4 U VD

POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY

POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY
POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY

    A line of power and electronic control panels to manage the three-phase evaporating unit only where devices are served by a compressor rack. Various power ranges and a wide range of optionals allow you to choose the panel best suited to your system.

    Brochure download
    Download Instruction Manual
    POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY
    POWER AND ELECTRONIC CONTROL PANELS TO MANAGE EVAPORATING UNIT ONLY
      Application

      • Control of evaporating unit only with electrical defrost up to 12 kw.

      Options
      • Magnetothermic circuit breakers installed instead of fuses.
      • Free-voltage contact alarm output to activate other warning devices such as sirens or dialers.
      Main characteristic
      • Enabling for condensing unit, defrosting elements, evaporator fans, solenoid valve, room light and all standard-compliant electrical safeguards.
      • Compact, self-extinguishing ABS housing with IP65 protection rating and circuit breaker on front of panel.
      • Control electronics with large backlit LCD and user-friendly keypad.
      • LED system status indicators.
      • RS485 for connection to TeleNET industrial supervision network or Modbus-RTU standard protocol.
      Properties

      ECP400 BASE4 U VD
      ECP750 BASE4 U VD
      ECP1000 BASE4 U VD
      Dimension
      ECP400 BASE4 U VD
      350x450x160 mm
      ECP750 BASE4 U VD
      350x450x160 mm
      ECP1000 BASE4 U VD
      350x450x160 mm
      Weight
      ECP400 BASE4 U VD
      6kg
      ECP750 BASE4 U VD
      6kg
      ECP1000 BASE4 U VD
      7kg
      Front protection rating
      ECP400 BASE4 U VD
      IP 65
      ECP750 BASE4 U VD
      IP 65
      ECP1000 BASE4 U VD
      IP 65
      Power supply
      ECP400 BASE4 U VD
      400 VAC ±10% 50/60 Hz
      ECP750 BASE4 U VD
      400 VAC ±10% 50/60 Hz
      ECP1000 BASE4 U VD
      400 VAC ±10% 50/60 Hz
      Status indicator
      ECP400 BASE4 U VD
      Led + Display
      ECP750 BASE4 U VD
      Led + Display
      ECP1000 BASE4 U VD
      Led + Display
      Load type
      ECP400 BASE4 U VD
      Three phase
      ECP750 BASE4 U VD
      Three phase
      ECP1000 BASE4 U VD
      Three phase
      Working temperature
      ECP400 BASE4 U VD
      -5 ÷ +50 °C
      ECP750 BASE4 U VD
      -5 ÷ +50 °C
      ECP1000 BASE4 U VD
      -5 ÷ +50 °C
      Storage temperature
      ECP400 BASE4 U VD
      -10 ÷ +70°C
      ECP750 BASE4 U VD
      -10 ÷ +70°C
      ECP1000 BASE4 U VD
      -10 ÷ +70°C
      Relative ambient humidity
      ECP400 BASE4 U VD
      30% - 90% RH without condensate
      ECP750 BASE4 U VD
      30% - 90% RH without condensate
      ECP1000 BASE4 U VD
      30% - 90% RH without condensate
      Reading range
      ECP400 BASE4 U VD
      -45 ÷ +99°C
      ECP750 BASE4 U VD
      -45 ÷ +99°C
      ECP1000 BASE4 U VD
      -45 ÷ +99°C
      Door lock main switch
      ECP400 BASE4 U VD
      32 A
      ECP750 BASE4 U VD
      32 A
      ECP1000 BASE4 U VD
      32 A
      General protection
      ECP400 BASE4 U VD
      Fuses (option: magnetothermic protection)
      ECP750 BASE4 U VD
      Fuses (option: magnetothermic protection)
      ECP1000 BASE4 U VD
      Fuses (option: magnetothermic protection)
      Control
      ECP400 BASE4 U VD
      Pego
      ECP750 BASE4 U VD
      Pego
      ECP1000 BASE4 U VD
      Pego
      Alarm signals
      ECP400 BASE4 U VD
      Led + Buzzer
      ECP750 BASE4 U VD
      Led + Buzzer
      ECP1000 BASE4 U VD
      Led + Buzzer
      Defrosting
      ECP400 BASE4 U VD
      Electrical
      ECP750 BASE4 U VD
      Electrical
      ECP1000 BASE4 U VD
      Electrical
      Insulation transformer
      ECP400 BASE4 U VD
      Present
      ECP750 BASE4 U VD
      Present
      ECP1000 BASE4 U VD
      Present
      Ambient probe
      ECP400 BASE4 U VD
      NTC 10 kΩ
      ECP750 BASE4 U VD
      NTC 10 kΩ
      ECP1000 BASE4 U VD
      NTC 10 kΩ
      Evaporator probe 1
      ECP400 BASE4 U VD
      NTC 10 kΩ
      ECP750 BASE4 U VD
      NTC 10 kΩ
      ECP1000 BASE4 U VD
      NTC 10 kΩ
      Door switch
      ECP400 BASE4 U VD
      Present
      ECP750 BASE4 U VD
      Present
      ECP1000 BASE4 U VD
      Present
      Man in cold-room alarm
      ECP400 BASE4 U VD
      Available
      ECP750 BASE4 U VD
      Available
      ECP1000 BASE4 U VD
      Available
      Defrosting heaters 1
      ECP400 BASE4 U VD
      7500W
      ECP750 BASE4 U VD
      9000W
      ECP1000 BASE4 U VD
      12000W
      Evaporator fans 1
      ECP400 BASE4 U VD
      1500W (1 PH)
      ECP750 BASE4 U VD
      2x2000W (3 PH) or 2x1500W (1 PH)
      ECP1000 BASE4 U VD
      3x2000W (3 PH) or 3x1500W (1 PH)
      Solenoid valve 1
      ECP400 BASE4 U VD
      Present
      ECP750 BASE4 U VD
      Present
      ECP1000 BASE4 U VD
      Present
      Enable condensing unit
      ECP400 BASE4 U VD
      Present
      ECP750 BASE4 U VD
      Present
      ECP1000 BASE4 U VD
      Present
      Room light
      ECP400 BASE4 U VD
      Present
      ECP750 BASE4 U VD
      Present
      ECP1000 BASE4 U VD
      Present
      2 Configurable relays
      ECP400 BASE4 U VD
      Present
      ECP750 BASE4 U VD
      Present
      ECP1000 BASE4 U VD
      Present
      Supervision
      ECP400 BASE4 U VD
      TeleNet / Modbus-RTU
      ECP750 BASE4 U VD
      TeleNet / Modbus-RTU
      ECP1000 BASE4 U VD
      TeleNet / Modbus-RTU

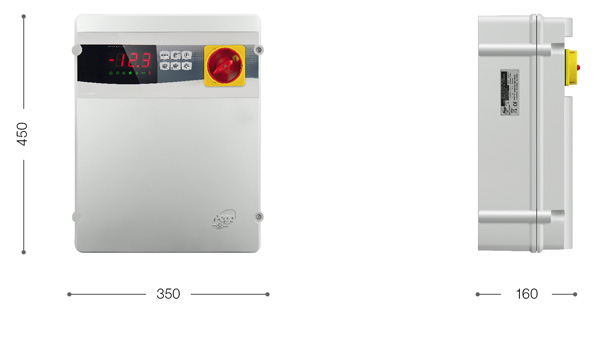

      Dimension
      ECP400 BASE4 U VD
      ECP400/750/1000 BASE4 U VD
      ECP750 BASE4 U VD
      ECP400/750/1000 BASE4 U VD
      ECP1000 BASE4 U VD
      ECP400/750/1000 BASE4 U VD
      Connection Scheme
      ECP400 BASE4 U VD
      ECP400/750/1000 BASE4 U VD
      ECP750 BASE4 U VD
      ECP400/750/1000 BASE4 U VD
      ECP1000 BASE4 U VD
      ECP400/750/1000 BASE4 U VD
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
      Available Versions
      ECP400 BASE4 U VD
      ECP750 BASE4 U VD
      ECP1000 BASE4 U VD
      Product Code
      110400BUVD01
      110400BUVD02
      Product Code
      110750BUVD01
      110750BUVD02
      Product Code
      1101000BUVD1
      1101000BUVD3
      Compressor
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Evaporator fan
      Product Code
      110400BUVD01
      1,5 kW
      Product Code
      110400BUVD02
      1,5 kW
      Defrosting
      Product Code
      110400BUVD01
      7,5 kW
      Product Code
      110400BUVD02
      7,5 kW
      Electronic expansion valve
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Man in cold-room alarm
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Complete cold room management
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Condensing unit management
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Temperature/Humidity Management
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Evaporating unit management
      Product Code
      110400BUVD01
      Yes
      Product Code
      110400BUVD02
      Yes
      Double system management
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Valve management electronic on/off
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Valve management Stepper electronics
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Double evaporator management
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Datalogger
      Product Code
      110400BUVD01
      No
      Product Code
      110400BUVD02
      No
      Compressor
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Evaporator fan
      Product Code
      110750BUVD01
      2,0 kW
      Product Code
      110750BUVD02
      2,0 kW
      Defrosting
      Product Code
      110750BUVD01
      9,0 kW
      Product Code
      110750BUVD02
      9,0 kW
      Electronic expansion valve
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Man in cold-room alarm
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Complete cold room management
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Condensing unit management
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Temperature/Humidity Management
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Evaporating unit management
      Product Code
      110750BUVD01
      Yes
      Product Code
      110750BUVD02
      Yes
      Double system management
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Valve management electronic on/off
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Valve management Stepper electronics
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Double evaporator management
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Datalogger
      Product Code
      110750BUVD01
      No
      Product Code
      110750BUVD02
      No
      Compressor
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Evaporator fan
      Product Code
      1101000BUVD1
      2,0 kW
      Product Code
      1101000BUVD3
      2,0 kW
      Defrosting
      Product Code
      1101000BUVD1
      12,0 kW
      Product Code
      1101000BUVD3
      12,0 kW
      Electronic expansion valve
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Man in cold-room alarm
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Complete cold room management
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Condensing unit management
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Temperature/Humidity Management
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Evaporating unit management
      Product Code
      1101000BUVD1
      Yes
      Product Code
      1101000BUVD3
      Yes
      Double system management
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Valve management electronic on/off
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Valve management Stepper electronics
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Double evaporator management
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
      Datalogger
      Product Code
      1101000BUVD1
      No
      Product Code
      1101000BUVD3
      No
