ECP 15

A SIMPLE, COMPACT SOLUTION FOR CONTROL OF THREE-PHASE CONDENSING UNITS

A SIMPLE, COMPACT SOLUTION FOR CONTROL OF THREE-PHASE CONDENSING UNITS
A SIMPLE, COMPACT SOLUTION FOR CONTROL OF THREE-PHASE CONDENSING UNITS

    A simple, compact solution for control of three-phase condensing units up to 15 HP. The call can be generated by pressure switch (compressor shutdown in pump-down mode), thermostat or clean contact.

    Brochure download
    Download Instruction Manual
    A SIMPLE, COMPACT SOLUTION FOR CONTROL OF THREE-PHASE CONDENSING UNITS
    A SIMPLE, COMPACT SOLUTION FOR CONTROL OF THREE-PHASE CONDENSING UNITS
      Applications

      • Control of condensing unit with three- phase compressor up to 15 HP.

      Main characteristics
      • Direct control of compressor, condenser fans and all standard-compliant electrical safeguards.
      • Compressor call by pressure switch, thermostat or clean contact.
      • Compact unit with self-extinguishing ABS panel and IP65 protection rating plus circuit breaker on front of panel.
      • System status indicated by LED icon.
      Properties
      Dimension
      ECP 15
      350x450x160 mm
      Weight
      ECP 15
      7kg
      Front protection rating
      ECP 15
      IP 65
      Power supply
      ECP 15
      400 VAC ±10% 50/60 Hz
      Status indicator
      ECP 15
      Led
      Load type
      ECP 15
      Three phase
      Working temperature
      ECP 15
      -5 ÷ +50 °C
      Storage temperature
      ECP 15
      -10 ÷ +70°C
      Relative ambient humidity
      ECP 15
      30% - 90% RH without condensate
      Door lock main switch
      ECP 15
      63 A
      Compressor protection
      ECP 15
      Thermal relay
      General protection
      ECP 15
      Fuses
      Control
      ECP 15
      External pressure switch
      Insulation transformer
      ECP 15
      Present
      Pump-down stop
      ECP 15
      Present
      Oil pressure switch
      ECP 15
      Present
      Condenser fans regulator press. switch (r.p.s.)
      ECP 15
      Present
      Thermostat or pressure switch
      ECP 15
      Present
      Kriwan® connection
      ECP 15
      Present
      Compressor
      ECP 15
      7500÷11250W (10÷15 HP)
      Condenser fans output 1
      ECP 15
      2000W(3PH) or 1500W (1PH)
      Condenser fans output 2 (separated)
      ECP 15
      2000W (3PH) or 1500W (1PH)
      Compressor oil heater
      ECP 15
      Present
      Dimension
      ECP 15
      ECP 15

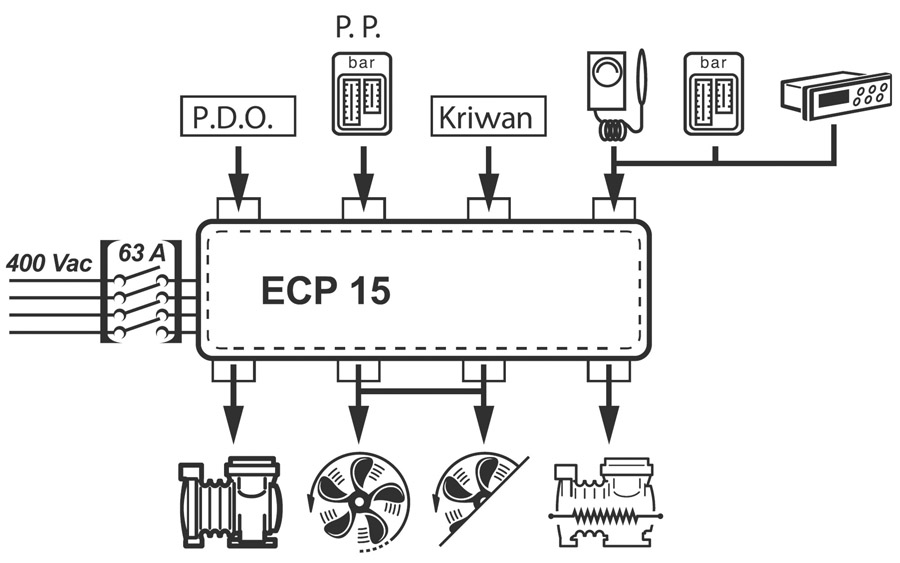

      Connection Scheme
      ECP 15
      ECP 15
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
      Available Versions
      ECP 15
      Product Code
      10015B01
      10015B02
      10015B03
      10015B04
      10015B05
      Compressor
      Product Code
      10015B01
      30.0 - 36.0 A
      Product Code
      10015B02
      27.0 - 32.0 A
      Product Code
      10015B03
      20.0 - 25.0 A
      Product Code
      10015B04
      14.0 - 20.0 A
      Product Code
      10015B05
      23.0 - 28.0 A
      Evaporator fan
      Product Code
      10015B01
      2,0 kW
      Product Code
      10015B02
      2,0 kW
      Product Code
      10015B03
      2,0 kW
      Product Code
      10015B04
      2,0 kW
      Product Code
      10015B05
      2,0 kW
      Defrosting
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Electronic expansion valve
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Man in cold-room alarm
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Complete cold room management
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Condensing unit management
      Product Code
      10015B01
      Yes
      Product Code
      10015B02
      Yes
      Product Code
      10015B03
      Yes
      Product Code
      10015B04
      Yes
      Product Code
      10015B05
      Yes
      Temperature/Humidity Management
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Evaporating unit management
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Double system management
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Valve management electronic on/off
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Valve management Stepper electronics
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Double evaporator management
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
      Datalogger
      Product Code
      10015B01
      No
      Product Code
      10015B02
      No
      Product Code
      10015B03
      No
      Product Code
      10015B04
      No
      Product Code
      10015B05
      No
