ECP400/750/1000 VD CR

A LINE OF POWER BOARDS FOR REFRIGERATION SYSTEMS

A LINE OF POWER BOARDS FOR REFRIGERATION SYSTEMS
A LINE OF POWER BOARDS FOR REFRIGERATION SYSTEMS

    A line of power boards for refrigeration systems with three-phase compressors up to 10 HP to be linked to an out-of-room control unit. Controls and powers the compressor, condenser fans, evaporator fans, solenoid valve, defrost elements managed by means of cold fans and defrost call enabling from out-of-room control unit.

    Brochure download
    Download Instruction Manual
    A LINE OF POWER BOARDS FOR REFRIGERATION SYSTEMS
    A LINE OF POWER BOARDS FOR REFRIGERATION SYSTEMS
      Applications

      • Control of three-phase static or ventilated refrigeration systems up to 10 HP, with electric or off- cycle defrost linked to an out-of-room control unit.

      Main characteristics
      • Direct control of compressor, condenser fans, compressor oil element, defrost elements, evaporator fans, solenoid valve and all standard- compliant electrical safeguards.
      • Compact unit with self-extinguishing ABS housing panel and IP65 protection rating plus circuit breaker on front of panel.
      • Electromechanical timer for timed defrosts.
      • System status indicated by LED icon.
      • Can be controlled by thermostat, thermo- regulator or out-of-room control unit.
      • Can house thermo-regulator on front of panel.
      Options
      • Installation of magnetothermic circuit breakers instead of fuses.
      • Compressor shutdown in pump-down mode.
      • Datalogger function with PLUS200 EXPERT CR out-of-room controller for temperature and alarms registration.
      Properties

      ECP 400 VD CR
      ECP 750 VD CR
      ECP 1000 VD CR
      Dimension
      ECP 400 VD CR
      350x450x160 mm
      ECP 750 VD CR
      350x450x160 mm
      ECP 1000 VD CR
      350x450x160 mm
      Weight
      ECP 400 VD CR
      6kg
      ECP 750 VD CR
      6kg
      ECP 1000 VD CR
      7kg
      Front protection rating
      ECP 400 VD CR
      IP 65
      ECP 750 VD CR
      IP 65
      ECP 1000 VD CR
      IP 65
      Power supply
      ECP 400 VD CR
      400 VAC ±10% 50/60 Hz
      ECP 750 VD CR
      400 VAC ±10% 50/60 Hz
      ECP 1000 VD CR
      400 VAC ±10% 50/60 Hz
      Status indicator
      ECP 400 VD CR
      Led
      ECP 750 VD CR
      Led
      ECP 1000 VD CR
      Led
      Load type
      ECP 400 VD CR
      Three phase
      ECP 750 VD CR
      Three phase
      ECP 1000 VD CR
      Three phase
      Working temperature
      ECP 400 VD CR
      -5 ÷ +50 °C
      ECP 750 VD CR
      -5 ÷ +50 °C
      ECP 1000 VD CR
      -5 ÷ +50 °C
      Storage temperature
      ECP 400 VD CR
      -10 ÷ +70°C
      ECP 750 VD CR
      -10 ÷ +70°C
      ECP 1000 VD CR
      -10 ÷ +70°C
      Relative ambient humidity
      ECP 400 VD CR
      30% - 90% RH without condensate
      ECP 750 VD CR
      30% - 90% RH without condensate
      ECP 1000 VD CR
      30% - 90% RH without condensate
      Door lock main switch
      ECP 400 VD CR
      32 A
      ECP 750 VD CR
      32 A
      ECP 1000 VD CR
      32 A
      Compressor protection
      ECP 400 VD CR
      Thermal relay
      ECP 750 VD CR
      Thermal relay
      ECP 1000 VD CR
      Thermal relay
      General protection
      ECP 400 VD CR
      Fuses
      ECP 750 VD CR
      Fuses
      ECP 1000 VD CR
      Fuses
      Control compressor 1
      ECP 400 VD CR
      External ON/OFF
      ECP 750 VD CR
      External ON/OFF
      ECP 1000 VD CR
      External ON/OFF
      Control defrost 1
      ECP 400 VD CR
      External ON/OFF
      ECP 750 VD CR
      External ON/OFF
      ECP 1000 VD CR
      External ON/OFF
      Control fans 1
      ECP 400 VD CR
      External ON/OFF
      ECP 750 VD CR
      External ON/OFF
      ECP 1000 VD CR
      External ON/OFF
      Alarm signals
      ECP 400 VD CR
      Led
      ECP 750 VD CR
      Led
      ECP 1000 VD CR
      Led
      Defrosting
      ECP 400 VD CR
      Electrical
      ECP 750 VD CR
      Electrical
      ECP 1000 VD CR
      Electrical
      Insulation transformer
      ECP 400 VD CR
      Present
      ECP 750 VD CR
      Present
      ECP 1000 VD CR
      Present
      Compressor 1
      ECP 400 VD CR
      Enable only
      ECP 750 VD CR
      Enable only
      ECP 1000 VD CR
      Enable only
      Defrosting heaters 1
      ECP 400 VD CR
      Enable only
      ECP 750 VD CR
      Enable only
      ECP 1000 VD CR
      Enable only
      Evaporator fans 1
      ECP 400 VD CR
      Enable only
      ECP 750 VD CR
      Enable only
      ECP 1000 VD CR
      Enable only
      Oil pressure switch
      ECP 400 VD CR
      -
      ECP 750 VD CR
      -
      ECP 1000 VD CR
      Present
      High/low pressure switch
      ECP 400 VD CR
      Present
      ECP 750 VD CR
      Present
      ECP 1000 VD CR
      Present
      Condenser fans regulator press. switch (r.p.s.)
      ECP 400 VD CR
      Present
      ECP 750 VD CR
      Present
      ECP 1000 VD CR
      Present
      Kriwan® connection
      ECP 400 VD CR
      Present
      ECP 750 VD CR
      Present
      ECP 1000 VD CR
      Present
      Compressor
      ECP 400 VD CR
      2200 ÷ 3000W (3÷4 HP)
      ECP 750 VD CR
      3000 ÷ 5500W (4÷7,5 HP)
      ECP 1000 VD CR
      5500 ÷ 7500W (7÷10 HP)
      Defrosting heaters 1
      ECP 400 VD CR
      7500W (AC1)
      ECP 750 VD CR
      9000W (AC1)
      ECP 1000 VD CR
      12000W (AC1)
      Evaporator fans 1
      ECP 400 VD CR
      1500W (1 PH)
      ECP 750 VD CR
      1500W (1 PH)
      ECP 1000 VD CR
      2000W (3 PH) or 1500W (1 PH)
      Condenser fans output 1
      ECP 400 VD CR
      800W totals (1 PH)
      ECP 750 VD CR
      800W totals (1 PH)
      ECP 1000 VD CR
      2000W(3PH) or 1500W (1PH)
      Condenser fans output 2 (separated)
      ECP 400 VD CR
      800 W (1PH)
      ECP 750 VD CR
      800 W (1PH)
      ECP 1000 VD CR
      2000W (3PH) or 1500W (1PH)
      Solenoid valve 1
      ECP 400 VD CR
      Present
      ECP 750 VD CR
      Present
      ECP 1000 VD CR
      Present
      Compressor oil heater
      ECP 400 VD CR
      Present
      ECP 750 VD CR
      Present
      ECP 1000 VD CR
      Present

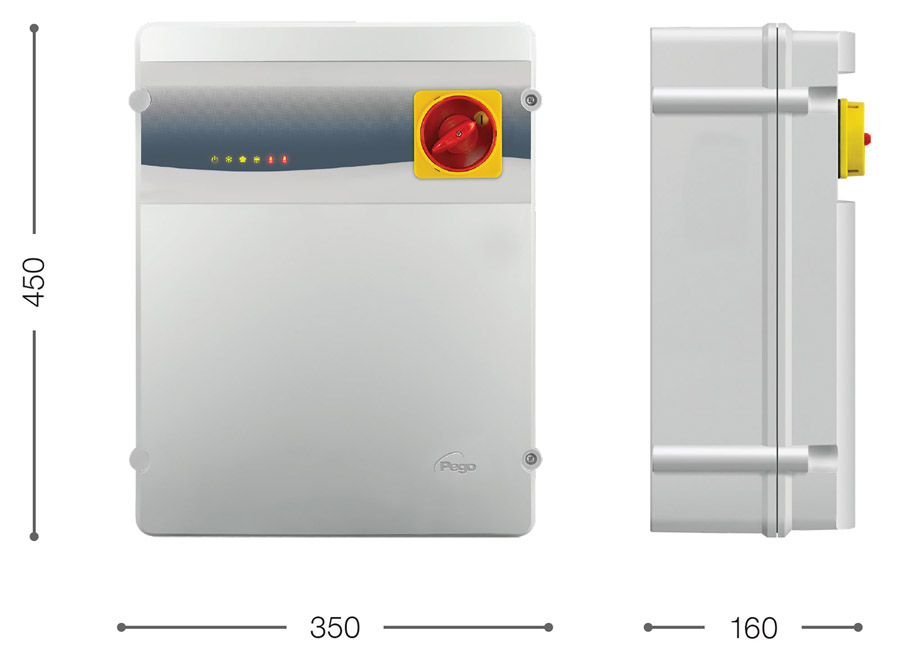

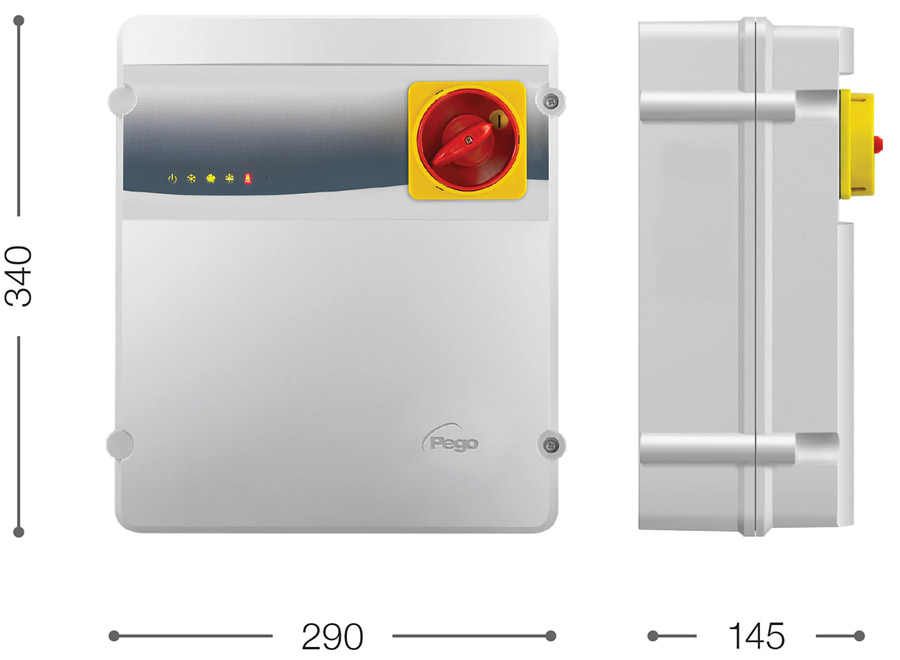

      Dimension
      ECP 400 VD CR
      ECP400/750/1000 VD CR
      ECP 750 VD CR
      ECP400/750/1000 VD CR
      ECP 1000 VD CR
      ECP400/750/1000 VD CR
      Connection Scheme
      ECP 400 VD CR
      ECP400/750/1000 VD CR
      ECP 750 VD CR
      ECP400/750/1000 VD CR
      ECP 1000 VD CR
      ECP400/750/1000 VD CR
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
      Available Versions
      ECP 400 VD CR
      ECP 750 VD CR
      ECP 1000 VD CR
      Product Code
      100400VDQ01
      100400VDQ02
      100400VDQ03
      100400VDQ04
      100400VDQ07
      Product Code
      100750VDQ01
      100750VDQ02
      100750VDQ03
      100750VDQ04
      100750VDQ06
      Product Code
      1001000VDQ02
      1001000VDQ03
      1001000VDQ04
      1001000VDQ05
      1001000VDQ06
      1001000VDQ07
      Compressor
      Product Code
      100400VDQ01
      7.0 - 10.0 A
      Product Code
      100400VDQ02
      9.0 - 12.5 A
      Product Code
      100400VDQ03
