ECP 200 EXPERT 2EV

CONTROL PANEL FOR COLD ROOMS

CONTROL PANEL FOR COLD ROOMS
CONTROL PANEL FOR COLD ROOMS

    ECP 200 EXPERT 2EV control panel increases the range 200 EXPERT with a controller for cold rooms with single-phase compressor up to 2 HP and two evaporators, specially designed to provide safety, protection, control and ease-of-installation – all in one unit. It allows a complete control of all the components on a refrigeration system with new features added.

    Brochure download
    Download Instruction Manual
    CONTROL PANEL FOR COLD ROOMS
    CONTROL PANEL FOR COLD ROOMS
      Applications

      • Complete control of single-phase static or ventilated refrigeration systems up to 2 HP, with off-cycle or electrical defrosting and direct or pump-down compressor stop.

      • Control of two evaporators with two temperature probes of end defrost.

      • Control of evaporating unit (single or double evaporator) only with freon solenoid consensus o remote motor condenser consensus.

      Main characteristics
      • Direct control of compressor, defrosting heaters, evaporator fans and room light with free-voltage outputs.
      • Built-in differential magnetothermic breaker for protection and cut-off of refrigeration unit.
      • Innovative, stylish design. Transparent cover for access to magnetothermic breaker, all with IP 65 protection rating.
      • Auxiliary relay with parameter-configured activation (alarm, temperature set-point, direct control via frontal pushbutton, thermostat-holder demisting element, remote motor condenser unit consensus, freon solenoid control consensus where compressor pump-down operation is applied).
      • Dedicated enabling of condensing unit in single evaporator configuration.
      • RS485 for connection to TeleNET industrial supervision network.
      • Guaranteed, certified safety and protection thanks to incorporated magnetothermic differential circuit breaker, which cuts the general power supply.
      • Simple wiring.
      • Easy installation and opening thanks to new hinged cover.
      • Simple, flexible programming gives extreme versatility of use.
      • Compressor can be run in pump-down stop mode.
      • Installation times and costs reduced thanks to incorporation of control and protection in a single room-dedicated unit.
      • Defrost with real time clock.
      • Independent and separated functions for alarm relay, condensing unit enable and TeleNET monitoring system.
      • HACCP function with memory of the last alarm and number of alarm counter.
      Properties
      Dimension
      ECP 200 EXPERT 2EV
      263 x 180 x 96 mm
      Weight
      ECP 200 EXPERT 2EV
      1,7kg
      Front protection rating
      ECP 200 EXPERT 2EV
      IP 65
      Power supply
      ECP 200 EXPERT 2EV
      230 VAC ±10% 50/60 Hz
      Status indicator
      ECP 200 EXPERT 2EV
      Led + Display
      Load type
      ECP 200 EXPERT 2EV
      Single phase
      Working temperature
      ECP 200 EXPERT 2EV
      -5 ÷ +50 °C
      Storage temperature
      ECP 200 EXPERT 2EV
      -10 ÷ +70°C
      Relative ambient humidity
      ECP 200 EXPERT 2EV
      30% - 90% RH without condensate
      Reading range
      ECP 200 EXPERT 2EV
      -45 ÷ +99°C
      Main switch / general protection
      ECP 200 EXPERT 2EV
      2 poles differential magnetothermic 16A
      Control
      ECP 200 EXPERT 2EV
      Pego
      Alarm signals
      ECP 200 EXPERT 2EV
      Led + Buzzer
      Defrosting
      ECP 200 EXPERT 2EV
      Electrical (RTC)
      Resolution
      ECP 200 EXPERT 2EV
      0,1 °C
      Compressor functioning mode selection
      ECP 200 EXPERT 2EV
      Pump Down - Thermostat
      Ambient probe
      ECP 200 EXPERT 2EV
      NTC 10 kΩ
      Evaporator probe 1
      ECP 200 EXPERT 2EV
      NTC 10 kΩ
      Evaporator probe 2
      ECP 200 EXPERT 2EV
      NTC 10 kΩ
      Door switch
      ECP 200 EXPERT 2EV
      Present
      High/low pressure switch
      ECP 200 EXPERT 2EV
      Present
      Man in cold-room alarm
      ECP 200 EXPERT 2EV
      Present
      Compressor
      ECP 200 EXPERT 2EV
      1500W (AC3)
      Defrosting heaters 1
      ECP 200 EXPERT 2EV
      1500 W (AC1)
      Defrosting heaters 2
      ECP 200 EXPERT 2EV
      1500W (AC1)
      Evaporator fans
      ECP 200 EXPERT 2EV
      500W (AC3)
      Evaporator fans 1
      ECP 200 EXPERT 2EV
      1500W (AC1)
      Evaporator fans 2
      ECP 200 EXPERT 2EV
      1500W (AC1)
      Solenoid valve
      ECP 200 EXPERT 2EV
      Present
      Room light
      ECP 200 EXPERT 2EV
      800W (AC1) resistive load
      Alarm/AUX relay
      ECP 200 EXPERT 2EV
      100W
      Supervision
      ECP 200 EXPERT 2EV
      TeleNet
      Dimension
      ECP 200 EXPERT 2EV
      ECP 200 EXPERT 2EV

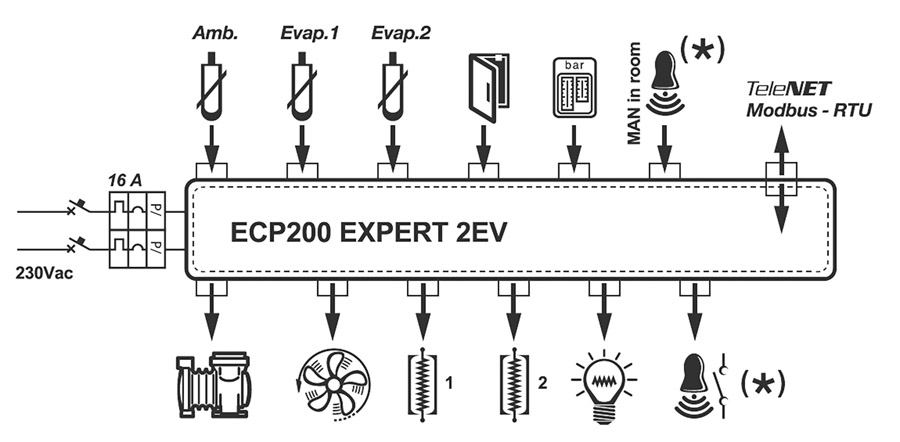

      Connection Scheme
      ECP 200 EXPERT 2EV
      ECP 200 EXPERT 2EV
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
