NANO400/750/1000 VD

A LINE OF POWER AND CONTROL BOARDS FOR REFRIGERATION SYSTEM

A LINE OF POWER AND CONTROL BOARDS FOR REFRIGERATION SYSTEM
A LINE OF POWER AND CONTROL BOARDS FOR REFRIGERATION SYSTEM

    A line of power and control boards for refrigeration systems with three-phase compressors up to 10 HP that provide complete cold room management. You can control the room light and the stand-by system using the buttons on the thermostat. Integrated PEGO thermo-regulator controls compressor, ventilation, defrosting and light. The unit also controls the door switch, which automatically turns on the room light, and compressor and fan shutdown.

    Brochure download
    Download Instruction Manual
    A LINE OF POWER AND CONTROL BOARDS FOR REFRIGERATION SYSTEM
    A LINE OF POWER AND CONTROL BOARDS FOR REFRIGERATION SYSTEM
      Applications

      • Complete control of three-phase static or ventilated refrigeration systems up to 10 HP, with electric or off-cycle defrost.

      Main characteristic
      • Designed to provide an immediate start-up and easy maintenance.
      • Direct control of compressor, condenser fans, compressor oil element, defrost elements, evaporator fans, solenoid valve, door heater, room light and all standard-compliant electrical safeguards.
      • Compact unit with self-extinguishing ABS housing panel and IP55 protection rating plus circuit breaker on front of panel.
      • Integrated PEGO thermo-regulator (Expert Nano 4CK).
      • System status indicated by dysplay.
      • Key operated ON/OFF.
      • Cold room light ON/OFF switch with key or by means of door switch.
      • Key operated manual START/STOP defrosting.
      • Clock for programmed defrost (RTC).
      • Configurable multifunction output, alternative to the light output.
      • RS485 serial connection with Modbus-RTU or Telenet protocol.
      Options
      • Installation of magnetothermic circuit breakers instead of fuses.
      • Compressor shutdown in pump-down mode.
      • Hot gas defrost control.
      Properties

      NANO400 VD
      NANO750 VD
      NANO1000 VD
      Dimension
      NANO400 VD
      350x450x160 mm
      NANO750 VD
      350x450x160 mm
      NANO1000 VD
      350x450x160 mm
      Weight
      NANO400 VD
      6kg
      NANO750 VD
      6kg
      NANO1000 VD
      7kg
      Front protection rating
      NANO400 VD
      IP 55
      NANO750 VD
      IP 55
      NANO1000 VD
      IP 55
      Power supply
      NANO400 VD
      400 VAC ±10% 50/60 Hz
      NANO750 VD
      400 VAC ±10% 50/60 Hz
      NANO1000 VD
      400 VAC ±10% 50/60 Hz
      Status indicator
      NANO400 VD
      Display
      NANO750 VD
      Display
      NANO1000 VD
      Display
      Load type
      NANO400 VD
      Three phase
      NANO750 VD
      Three phase
      NANO1000 VD
      Three phase
      Working temperature
      NANO400 VD
      -5 ÷ +50 °C
      NANO750 VD
      -5 ÷ +50 °C
      NANO1000 VD
      -5 ÷ +50 °C
      Storage temperature
      NANO400 VD
      -10 ÷ +70°C
      NANO750 VD
      -10 ÷ +70°C
      NANO1000 VD
      -10 ÷ +70°C
      Relative ambient humidity
      NANO400 VD
      30% - 90% RH without condensate
      NANO750 VD
      30% - 90% RH without condensate
      NANO1000 VD
      30% - 90% RH without condensate
      Door lock main switch
      NANO400 VD
      32 A
      NANO750 VD
      32 A
      NANO1000 VD
      32 A
      Compressor protection
      NANO400 VD
      Thermal relay
      NANO750 VD
      Thermal relay
      NANO1000 VD
      Thermal relay
      General protection
      NANO400 VD
      Fuses
      NANO750 VD
      Fuses
      NANO1000 VD
      Fuses
      Control
      NANO400 VD
      PEGO Thermoregulator (Expert Nano 4CK)
      NANO750 VD
      PEGO Thermoregulator (Expert Nano 4CK)
      NANO1000 VD
      PEGO Thermoregulator (Expert Nano 4CK)
      Alarm signals
      NANO400 VD
      Display + Buzzer
      NANO750 VD
      Display + Buzzer
      NANO1000 VD
      Display + Buzzer
      Defrosting
      NANO400 VD
      Electrical
      NANO750 VD
      Electrical
      NANO1000 VD
      Electrical
      Insulation transformer
      NANO400 VD
      Present
      NANO750 VD
      Present
      NANO1000 VD
      Present
      Clock (RTC)
      NANO400 VD
      Present
      NANO750 VD
      Present
      NANO1000 VD
      Present
      Ambient probe
      NANO400 VD
      NTC 10 kΩ
      NANO750 VD
      NTC 10 kΩ
      NANO1000 VD
      NTC 10 kΩ
      Evaporator probe
      NANO400 VD
      NTC 10 kΩ
      NANO750 VD
      NTC 10 kΩ
      NANO1000 VD
      NTC 10 kΩ
      Door switch
      NANO400 VD
      Present
      NANO750 VD
      Present
      NANO1000 VD
      Present
      Oil pressure switch
      NANO400 VD
      -
      NANO750 VD
      -
      NANO1000 VD
      Present
      High/low pressure switch
      NANO400 VD
      Present
      NANO750 VD
      Present
      NANO1000 VD
      Present
      Condenser fans regulator press. switch (r.p.s.)
      NANO400 VD
      Present
      NANO750 VD
      Present
      NANO1000 VD
      Present
      Kriwan® connection
      NANO400 VD
      Present
      NANO750 VD
      Present
      NANO1000 VD
      Present
      Compressor
      NANO400 VD
      2200 ÷ 3000W (3 ÷ 4 HP)
      NANO750 VD
      3000 ÷ 5500W (4÷7,5 HP)
      NANO1000 VD
      5500 ÷ 7500W (7÷10 HP)
      Defrosting
      NANO400 VD
      9000W (3000W x 3, AC1)
      NANO750 VD
      10500W (3500W x 3, AC1)
      NANO1000 VD
      15000W (5000W x 3, AC1)
      Evaporator fans
      NANO400 VD
      1500W (1 PH)
      NANO750 VD
      1500W (1 PH)
      NANO1000 VD
      2000W (3PH) or 1500W (1PH)
      Condenser fans output 1
      NANO400 VD
      800W totals (1 PH)
      NANO750 VD
      800W totals (1 PH)
      NANO1000 VD
      2000W(3PH) or 1500W (1PH)
      Condenser fans output 2
      NANO400 VD
      800W ( 1PH )
      NANO750 VD
      800W ( 1PH )
      NANO1000 VD
      2000W (3 PH) or 1500W (1 PH)
      Solenoid valve
      NANO400 VD
      Present
      NANO750 VD
      Present
      NANO1000 VD
      Present
      Compressor oil heater
      NANO400 VD
      Present
      NANO750 VD
      Present
      NANO1000 VD
      Present
      Room light
      NANO400 VD
      Present
      NANO750 VD
      Present
      NANO1000 VD
      Present
      Supervision
      NANO400 VD
      TeleNet / Modbus-RTU
      NANO750 VD
      TeleNet / Modbus-RTU
      NANO1000 VD
      TeleNet / Modbus-RTU
      Dimension
      NANO400 VD
      NANO400/750/1000 VD
      NANO750 VD
      NANO400/750/1000 VD
      NANO1000 VD
      NANO400/750/1000 VD

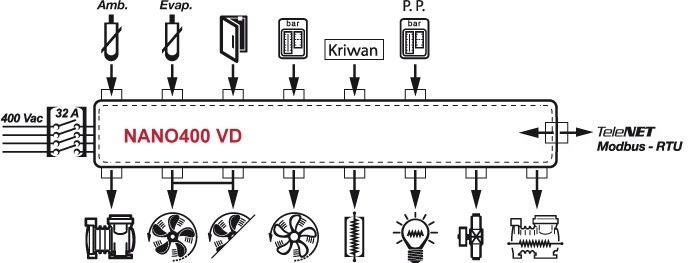

      Connection Scheme
      NANO400 VD
      NANO400/750/1000 VD
      NANO750 VD
      NANO400/750/1000 VD
      NANO1000 VD
      NANO400/750/1000 VD
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
      Available Versions
      NANO400 VD
      NANO750 VD
      NANO1000 VD
      Product Code
      100400VDX03
      100400VDX04
      100400VDX05
      100400VDX06
      Product Code
      100750VDX05
      100750VDX06
      100750VDX07
      100750VDX08
      Product Code
      1001000VDX03
      1001000VDX04
      1001000VDX05
      1001000VDX06
      1001000VDX07
      1001000VDX08
