PLUS200 2PLT

ELECTRONIC CONTROLLER FOR DOUBLE SYSTEM MANAGEMENT

Electronic control for double system management with the possibility of inserting an environment secondary probe to ensure the proper operation of the system in case of environment main probe failure. Can manage up to two compressors and two evaporators, operating in call rotation mode (for even utilisation) or with a double set-point.
Defrosts can be executed in real time clock mode.
Version with 100Master and remote telephone lead-connected keyboard/display.

Brochure download

Download Instruction Manual

Applications

Low temperature rooms with double safety system.
Room with single motor condenser unit and double evaporator.

Main characteristics

Single or double environment security probe.
Single set-point with 2-system control and delayed start of second system, compressor rotation.
Double set-point for gradual application of refrigeration power.
Real time clock defrosts with one or two evaporators, each with end-of-defrost sensor.
Display of ambient temperature, evaporator temperature, systems status.
The Plus200 2PLT electronic controller allows complete control of all the units on a double-system refrigeration plant.
Control of up to two compressors, double evaporator (fans and defrost elements) and room light.
Double evaporator control occurs separately with double end-of-defrost sensor.
Safety devices for the two systems are separate and room light can be controlled by door switch.
Alarm relay fitted as standard.

Properties

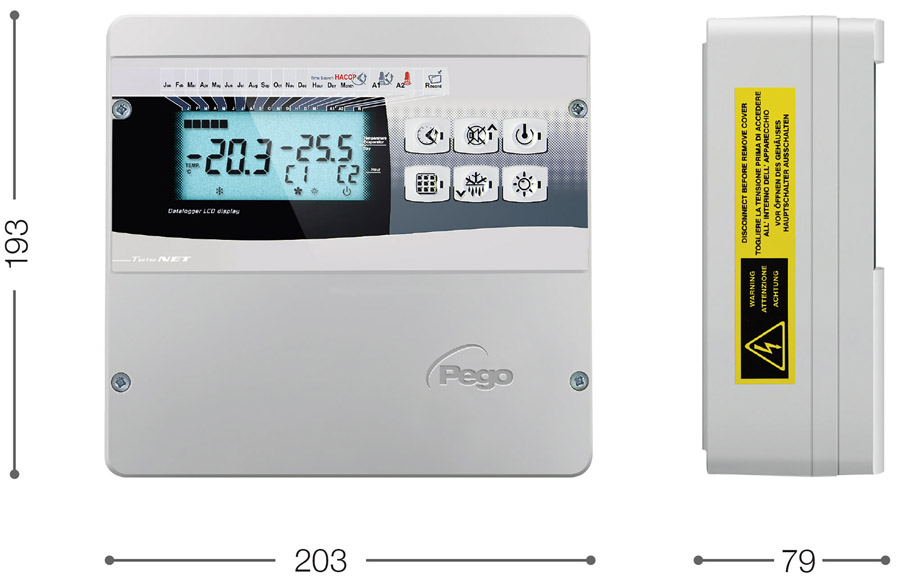

Dimension

PLUS200 2PLT

203x193x79 mm

Weight

PLUS200 2PLT

1kg

Front protection rating

PLUS200 2PLT

IP 65

Power supply

PLUS200 2PLT

230 VAC ±10% 50/60 Hz

Status indicator

PLUS200 2PLT

Display LCD (with backlight)

Load type

PLUS200 2PLT

Single phase

Working temperature

PLUS200 2PLT

-5 ÷ +50 °C

Storage temperature

PLUS200 2PLT

-10 ÷ +70°C

Relative ambient humidity

PLUS200 2PLT

30% - 90% RH without condensate

Reading range

PLUS200 2PLT

-45 ÷ +99°C

Alarm signals

PLUS200 2PLT

Led + Buzzer

Defrosting

PLUS200 2PLT

Electrical

Ambient probe 1

PLUS200 2PLT

NTC 10 kΩ

Ambient probe 2

PLUS200 2PLT

NTC 10 kΩ

Evaporator probe 1

PLUS200 2PLT

NTC 10 kΩ

Evaporator probe 2

PLUS200 2PLT

NTC 10 kΩ

Compressor protection 1

PLUS200 2PLT

Present

Compressor protection 2

PLUS200 2PLT

Present

Door switch

PLUS200 2PLT

Present

Man in cold-room alarm

PLUS200 2PLT

Present

Compressor 1

PLUS200 2PLT

750W (1 HP)

Compressor 2

PLUS200 2PLT

750W (1 HP)

Defrosting heaters 1

PLUS200 2PLT

1500W (AC1)

Defrosting heaters 2

PLUS200 2PLT

1500W (AC1)

Evaporator fans 1

PLUS200 2PLT

500W

Evaporator fans 2

PLUS200 2PLT

500W

Room light

PLUS200 2PLT

800W (AC1)

Alarm/AUX relay

PLUS200 2PLT

Present

Supervision

PLUS200 2PLT

TeleNet / Modbus-RTU

Dimension

PLUS200 2PLT

Connection Scheme

PLUS200 2PLT

Technical Characteristics

Inputs

Outputs

Dimensions and Diagram

Available Versions

PLUS200 2PLT

Product Code

200P2002PLT

Compressor

Product Code
200P2002PLT

Monofase

Evaporator fan

Product Code
200P2002PLT

0,5 kW

Defrosting

Product Code
200P2002PLT

1,5 kW

Electronic expansion valve

Product Code
200P2002PLT

No

Man in cold-room alarm

Product Code
200P2002PLT

No

Complete cold room management

Product Code
200P2002PLT

Yes

Condensing unit management

Product Code
200P2002PLT

No

Temperature/Humidity Management

Product Code
200P2002PLT

No

Evaporating unit management

Product Code
200P2002PLT

No

Double system management

Product Code
200P2002PLT

Yes

Valve management electronic on/off

Product Code
200P2002PLT

No

Valve management Stepper electronics

Product Code
200P2002PLT

No

Double evaporator management

Product Code
200P2002PLT

No

Datalogger

Product Code
200P2002PLT

No
