EASYSTEAM ES

Easysteam ES is the most evolved and flexible solution for steam humidification of any environment. The integrated electronic control permits to configure and optimize the humidifier on the basis of customer’s specific requirements and to guarantee its long-lasting thanks to diagnostic routines. Stainless steel removable front cover, spring clamps cylinders and quick connection power connector permit a rapid and simple maintenance. The full range of models and accessories satisfy all installation requirements.

Download Brochure

Download Instruction Manual

Applications

Steam/humidity generator for industrial plants, offices, civil facilities, call centres, hotels, museums and bookshops, technological or medical facilities, tobacco industry, food industry, seasoning, wood industry, paper mills, printing industries and steam rooms.

Description

Electrodes steam humidifiers.
Single-phase power supply versions with steam producing up to 8 kg/h.
Three-phase power supply versions with steam producing up to 48 kg/h.
Master/slave humidifiers management (up to 6 units) to reach steam productions up to 288 kg/h.
Structure entirely of stainless steel and abs plastic.
Easily interchangeable cylinders with steel electrodes, limestone filter on the bottom, maximum level sensor and connector connections.
Solenoid valve for water charging.
Tough and reliable drain pump.
“Smart production for low conductivity” function; the humidifier automatically regulates the percentage of steam production based on the conductivity of the water.
Available cylinders for low conductivity water (minimum conductivity limit 125 μs/cm).
Arrangement for fan unit power supply.
Cold Drain Adapter integrated for the connection of the condensate drain and predisposition for the mounting of the Cold Drain KIT for cooling water discharge. Possible to order humidifiers with Cold Drain KIT already mounted.
Integrated electronic control.
Large accessories range.

Electronic control

Featuring numerous parameters and an user-friendly display, the EASYSTEAM controller allows precise setting of humidifiers performance. Thanks to the high number of available variables it is possible to personalize humidifier functioning on the basis of customer requirements.
Ten operating modes can be set among which ON/OFF from external contact, proportional with built-in humidistat and 4-20mA or 0-10V probe, proportional with external 0-10V signal. Built-in thermostat proportional or ON/OFF. BMS control via Modbus.
Duct probe management.
Optimised use for steam baths thanks to the built-in temperature control, essence management, inlet and exhaust fan control.
Settable with maximum capacity.
Proportional regulation of steam dispensing from 20% to 100%.
Steam dispensing reduction from digital input.
Programmable automatic drainage when not used.
Management of up to 6 humidifiers in battery with master/slave configuration.
Humidifier operating hour meter.
Maximum level sensor management.
Control console with large display and status icons for reading and programming work data remotely up to 100 m away with a simple phone cable.
Diagnostics for problems identifying or maintenance need.
Serial RS485 connection with Modbus protocol.

Technical Characteristics

ES3-M

ES6-M

ES8-M

ES6

ES12

ES24

ES48

Dimension

ES3-M

430x525x240 mm

ES6-M

430x525x240 mm

ES8-M

430x710x240 mm

ES6

430x525x240 mm

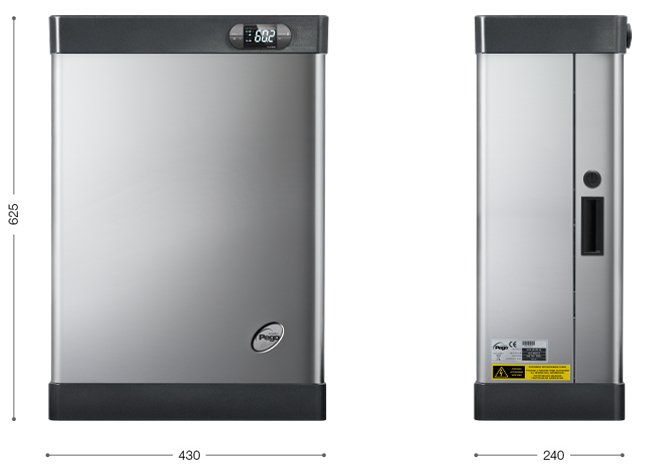

ES12

430x625x240 mm

ES24

430x710x240 mm

ES48

660x710x290 mm

Empty weight

ES3-M

10kg

ES6-M

10kg

ES8-M

19kg

ES6

10kg

ES12

12kg

ES24

19kg

ES48

38kg

Working weight

ES3-M

12kg

ES6-M

13kg

ES8-M

37kg

ES6

13kg

ES12

18kg

ES24

37kg

ES48

74kg

Steam production

ES3-M

3kg/h

ES6-M

6kg/h

ES8-M

8kg/h

ES6

6kg/h

ES12

12kg/h

ES24

24kg/h

ES48

48kg/h

Power supply

ES3-M

230V±10% 50 Hz

ES6-M

230V±10% 50 Hz

ES8-M

230V±10% 50 Hz

ES6

400V 3/N 50 Hz

ES12

400V 3/N 50 Hz

ES24

400V 3/N 50 Hz

ES48

400V 3/N 50 Hz

Power

ES3-M

2000W

ES6-M

4500W

ES8-M

6500W

ES6

4500W

ES12

9000W

ES24

18000W

ES48

35000W

Absorption

ES3-M

9 A

ES6-M

19 A

ES8-M

29 A

ES6

6,5 A

ES12

13 A

ES24

25 A

ES48

51 A

Electronic control

ES3-M

CONSOLLE NANO + MASTER HUM2

ES6-M

CONSOLLE NANO + MASTER HUM2

ES8-M

CONSOLLE NANO + MASTER HUM2

ES6

CONSOLLE NANO + MASTER HUM2

ES12

CONSOLLE NANO + MASTER HUM2

ES24

CONSOLLE NANO + MASTER HUM2

ES48

CONSOLLE NANO + MASTER HUM2

Power supply control

ES3-M

230V 50/60 Hz

ES6-M

230V 50/60 Hz

ES8-M

230V 50/60 Hz

ES6

230V 50/60 Hz

ES12

230V 50/60 Hz

ES24

230V 50/60 Hz

ES48

230V 50/60 Hz

Steam connector

ES3-M

1 x 25 mm

ES6-M

1 x 25 mm

ES8-M

1 x 25 mm

ES6

1 x 25 mm

ES12

1 x 25 mm

ES24

-

ES48

2 x 40 mm

Water charging connection

ES3-M

3/4"G male

ES6-M

3/4"G male

ES8-M

3/4"G male

ES6

3/4"G male

ES12

3/4"G male

ES24

3/4"G male

ES48

3/4"G male

Water discharging connection

ES3-M

40 mm

ES6-M

40 mm

ES8-M

40 mm

ES6

40 mm

ES12

40 mm

ES24

40 mm

ES48

40 mm

Number of cylinders

ES3-M

1

ES6-M

1

ES8-M

1

ES6

1

ES12

1

ES24

1

ES48

2

Pressione alimentazione idrica

ES3-M

1-10 Bar

ES6-M

1-10 Bar

ES8-M

1-10 Bar

ES6

1-10 Bar

ES12

1-10 Bar

ES24

1-10 Bar

ES48

1-10 Bar

Limits of water's hardness

ES3-M

160-450 mg/l CaCO³

ES6-M

160-450 mg/l CaCO³

ES8-M

160-450 mg/l CaCO³

ES6

160-450 mg/l CaCO³

ES12

160-450 mg/l CaCO³

ES24

160-450 mg/l CaCO³

ES48

160-450 mg/l CaCO³

Conducibilità dell'acqua

ES3-M

250-1300 µS/cm

ES6-M

250-1300 µS/cm

ES8-M

250-1300 µS/cm

ES6

250-1300 µS/cm

ES12

250-1300 µS/cm

ES24

-

ES48

250-1300 µS/cm

Cold drain adapter

ES3-M

Present

ES6-M

Present

ES8-M

Present

ES6

Present

ES12

Present

ES24

-

ES48

Present

Cold drain kit

ES3-M

Optional

ES6-M

Optional

ES8-M

Optional

ES6

Optional

ES12

Optional

ES24

Optional

ES48

Optional

Fan unit

ES3-M
