PLUS100 PAN

ELECTRONIC CONTROLLER DESIGNED FOR PAUSE-LEAVENING ROOMS

ELECTRONIC CONTROLLER DESIGNED FOR PAUSE-LEAVENING ROOMS
ELECTRONIC CONTROLLER DESIGNED FOR PAUSE-LEAVENING ROOMS

    Electronic controller designed for pause-leavening rooms. Work cycles easily programmed via user- friendly interface. Luminous graphics indicate progress of program being executed.

    Brochure download
    Download Instruction Manual
    ELECTRONIC CONTROLLER DESIGNED FOR PAUSE-LEAVENING ROOMS
    ELECTRONIC CONTROLLER DESIGNED FOR PAUSE-LEAVENING ROOMS
      Applications

      • Cabinets, counters and pause-leavening rooms for small and large bakeries and confectionaries.

      • Can replace other pause-leavening controls on existing plants.

      Functions
      • Neutral-zone temperature and humidity control.
      • Programming of four work cycles.
      • Double fan speed.
      • Hot and cold manual cycles.
      • Management of cooling, storage, leavening and product-ready settling phases.
      • Clock and calendar to set product-ready time.
      • Luminous synoptic display indicating program progress.
      Main characteristics
      • The Plus100 PAN electronic controller consists of the 100Master PAN unit, on which all the electrical connections are made, and the keyboard/display, which features a large LCD screen providing complete information on room status.
      • The overall unit allows control of cold, heat, ventilation, room light, humidification, dehumidification, defrosting and alarms via control of the NTC ambient and evaporator sensors and the 4-20 mA humidity sensor inputs.
      • Compressor and fan safety devices, door switch, humidifier alarm.
      • Special power boards complete with the plus100 PAN controller can be supplied according to customer-specified requirements.
      Properties
      Dimension
      PLUS100 PAN
      MASTER: 175x121,5x71 mm
      PLUS100 PAN: 210x110x35 mm
      Weight
      PLUS100 PAN
      1kg
      Front protection rating
      PLUS100 PAN
      IP 55 (keyboard/display)
      Power supply
      PLUS100 PAN
      230 VAC ±10% 50/60Hz
      Load type
      PLUS100 PAN
      Single phase
      Working temperature
      PLUS100 PAN
      -5 ÷ +50 °C
      Storage temperature
      PLUS100 PAN
      -10 ÷ +70 °C
      Relative ambient humidity
      PLUS100 PAN
      < 90% RH without condensate
      Reading range
      PLUS100 PAN
      -45 ÷ +45 °C
      Status indicator
      PLUS100 PAN
      Display LCD (with backlight)
      Alarm signals
      PLUS100 PAN
      Display + Buzzer
      Ambient probe
      PLUS100 PAN
      NTC 10 kΩ
      Evaporator probe
      PLUS100 PAN
      NTC 10 kΩ
      Humidity probe
      PLUS100 PAN
      4 ÷ 20mA (0 ÷ 100% RH)
      Compressor protection 1
      PLUS100 PAN
      Present
      Door switch
      PLUS100 PAN
      Present
      Humidifiers alarm
      PLUS100 PAN
      Present
      Fan protection
      PLUS100 PAN
      Present
      Compressor 1
      PLUS100 PAN
      1500W (2HP)
      Ventilatori(doppia velocità)
      PLUS100 PAN
      500W
      Defrosting heaters 1
      PLUS100 PAN
      1500W (AC1)
      Hot heaters
      PLUS100 PAN
      1500W
      Enable humidifiers
      PLUS100 PAN
      500W
      Enable dehumidifiers
      PLUS100 PAN
      500W
      Room light
      PLUS100 PAN
      800W (AC1)
      Alarm/AUX relay
      PLUS100 PAN
      Present
      Stand-by control
      PLUS100 PAN
      500W
      Supervision
      PLUS100 PAN
      TeleNet

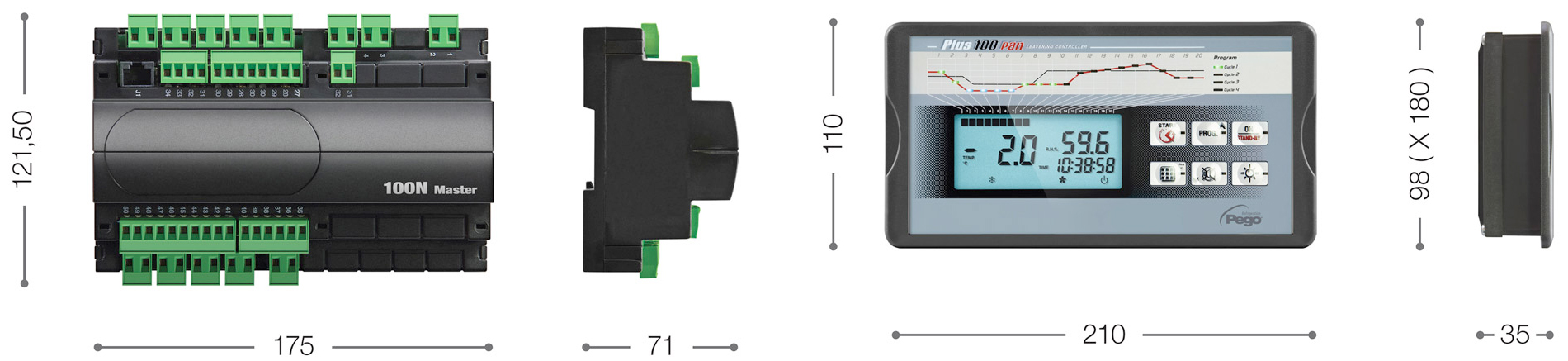

      Dimension
      PLUS100 PAN
      PLUS100 PAN
      Connection Scheme
      PLUS100 PAN
      PLUS100 PAN
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
