EXPERT NANO 2ZN Brochure download

2 RELAYS DIGITAL THERMOSTAT

The Expert NANO 2ZN is an electronic thermoregulator with two relays for hot/cold or humidifies/dehumidifies in neutral zone. It can be used also for a double setpoint with two separated outputs. It has one analogue input for NTC temperature probe, one analog input for humidity probe, two relays with separate contacts and RS485 output for monitoring system (TeleNet or Modbus-RTU). Buzzer is included and the power supply depending on model.

Pego Thermostat Humidistat EXPERT NANO 2ZN

Pego Thermostat Humidistat EXPERT NANO 2ZN

Pego Thermostat Humidistat EXPERT NANO 2ZN

Pego Thermostat Humidistat EXPERT NANO 2ZN



Applications
Management of climatic storage rooms.


Main characteristics
Configurable for hot/cold call or humidifies/dehumidifies call in neutral zone or as double set-point with distinct outputs.
Key operated ON/OFF.
Display/adjustment of temperature with decimal point.
Flat front surface for easy cleaning and keys of ample dimension which can be customized with various colours (on request).
Internal buzzer for acoustic signals.
High brightness display with increased icons and figures.
PEGO programming philosophy guaranteeing immediate start-up.
RS485 serial connection with Modbus-RTU or Telenet protocol.
IP65 front protection. Two-fold fastening options: clips / screws.





TECHNICAL CHARACTERISTICS
EXPERT NANO 2ZN12
EXPERT NANO 2ZN02
Dimension
93x37x59 mm
Drill hole template 71x29 mm (+0,2/-0,1 mm)
Installation
In front of board by means of rear fastening clips or two front screws
Casing
Plastic PC+ABS UL94 V-0 body, PC transparent front, key panel PC or PC+ABS
Insulation type
Class II
Front protection rating
IP 65 with front board installation
Power supply
12VAC +10/-15% 50/60 Hz — 12VDC +10/-15% class II

230VAC +10/-15%
50/60 Hz

Absorbed power 3 VA max
Working temperature -5 ÷ +55°C humidity <90% U.R. not condensing
Storage temperature -20 ÷ +70°C humidity <90% U.R. not condensing
Unsuitable operating environments
Environments with strong vibrations or impacts; aggressive, polluted or corrosive atmospheres, exposure to direct solar radiation, explosive atmospheres or flammable gas.
Display
3-Digit with sign, decimal point and LED status indicators
Resolution

0,1 °C
1% Rh

Probe precision (electronic) ±0,5 °C
1% Rh
Reading range
-45 ÷ 99 °C
0 ÷ 100% Rh
Connection
Screw fixed clamps
Software class A / parameters saved on non-volatile memory (EEPROM)
INPUTS
Analogue

1 input for NTC probe (10KΩ 1% at 25°C)
1 input for humidity probe (4-20mA/0-100% Rh)

OUTPUTS
Cold/Dehumidifies relay
(DO1) N.O. 16(6)A / 250VAC
Heaters/Humidifies relay
(DO2) N.O. 8(3)A / 250VAC
Buzzer
PRESENT
Supervision system
TELENET / MODBUS-RTU
DIMENSION
Pego Thermostat Humidistat EXPERT_nano_2ZN

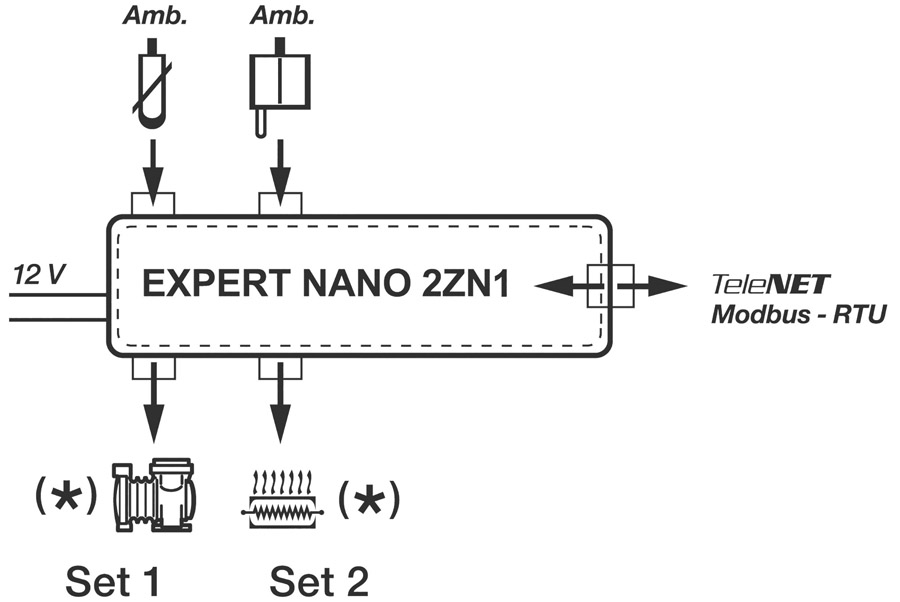

CONNECTION SCHEME
EXPERT_nano_2ZN EXPERT_nano_2ZN
(*) = Configurable function
(*) = Configurable function



DOWNLOAD INSTRUCTION
Instruction manual
